The Reflex Layer: Runtime Recovery for Agentic Systems

A few weeks ago, while preparing for a release, we ran into an unexpected failure in a multimodal analysis step in one of the agentic workflows. Soon, quite alarmingly, the same issue began appearing across all our testing sessions. We were able to narrow down the root cause: the traces revealed that the model misinterpreted a criterion in the prompt, causing a validation error in a tool call that resulted in a loop.

But the frustrating part was not the issue itself, so much as that it resolved on its own while we were planning a fix.

Despite increasingly unhinged attempts, including deliberate sabotage of the agent, we could no longer reproduce the issue. In the end, we tightened the prompt, refined the criteria, and called it a day.

This is why I get jitters every time we ship an agentic system. I cannot fully trust a system with a non-deterministic actor at its core, not until I see it working in production for a very long time.

The cause, though, isn't so surprising. Control frameworks like graph-based orchestration bring structure to agentic workflows, but their purpose isn't to ensure a probabilistic component behaves deterministically. What they offer are procedures that limit the damage when it (eventually) misbehaves.

Retries, timeouts, iteration limits, and graceful exits are non-negotiable, but their job is containment. For certain systems, however, containment isn't enough.

When a Reflex Layer is justified

Some systems can close this gap by building recovery into the graph itself: failovers, node switches, and exit paths triggered by pre-identified indicators. But anyone who has shipped graph-based agents knows the back-and-forth between keeping the agent on defined paths and catering to the full variety of user inputs. The two demands pull in opposite directions. You either trade the best-suited failover for a generic global one, or go down the rabbit hole of building in every failure path until they outnumber the success paths the graph was built around.

This snowballing occurs when a system supports too many scenarios, making it impossible to anticipate every failure, and a single failed session could cost the user something meaningful. For those systems, a dedicated recovery layer outside the graph is worth considering.

A layer built for such systems needs two capabilities: it must respond to runtime incidents with minimal human intervention, and it must quickly arrive at a course of action through cheap analysis. Which means it must not try to diagnose anything. Its job is to observe events, recognize registered signals, and execute preconfigured actions. That is classification, not diagnosis: matching a failure to a known shape is cheap; finding its root cause is not.

To be frank, I never named the solution I came up with. Some write-ups on runtime degradation classify it as a reflex, so for the sake of this article let's call it a Reflex Layer: a mechanism that lets a system respond fast when a known pattern occurs, leaving root-cause analysis to the observability layer, the way a reflex arc fires before the brain gets involved.

The founding principles of the solution aren't novel; it is a combination of circuit breakers, feature flags, and canary rollouts: an extension of the runtime degradations common in tool-based agents, adapted to graph-based orchestration. The difference is in its application. For instance, rather than replacing a single tool, Reflex Layer can switch the system to a different workflow.

Session-scoped degradation

In my experience, consumer-facing assistants are one of the clearest examples of systems that meet these criteria. They are expected to support a broad range of user requests by combining granular actions, where even a single failed session can have meaningful consequences for the user.

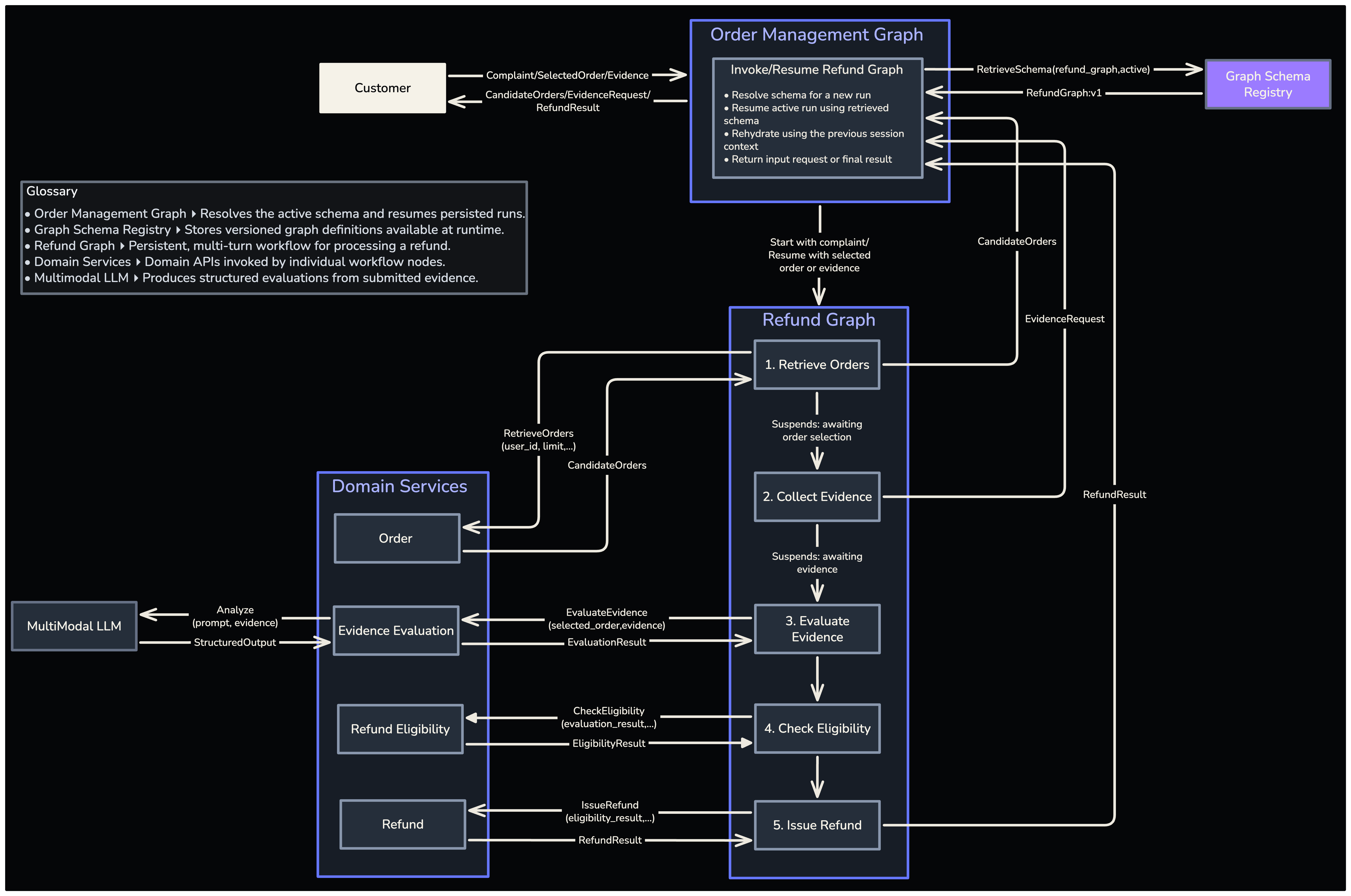

Consider an agentic "Order Management" assistant in a food delivery app that users can interact with to manage their active or past orders. One crucial action the assistant can support is requesting refunds. When a user lodges a complaint, it would identify the relevant order, request evidence, evaluate it, check refund eligibility, and either issue the refund or reject the request.

This flow can be represented as a Refund Graph, a versioned subgraph invoked by the parent Order Management Graph. Its definition is stored and versioned in the Graph Schema Registry, allowing the parent graph to resolve the appropriate schema when starting or resuming a refund request.

Imagine a scenario where a user frustratingly discovers that their order is missing the naan they ordered and tries to lodge a complaint. The assistant requests evidence; the user provides it, but during analysis the system encounters an error. The reason for the failure is being captured in the observability layer for later diagnosis, but that does nothing to recover the current session.

In a well-designed graph that uses retries, timeouts, and other containment principles, the agent should not enter an unbounded loop. It should exit cleanly and, if the resulting error is handled, present a useful message to the user. That is a far better experience than leaving the user to watch three bubbles bob up and down indefinitely, but it could still be the push that sends an incensed user over the edge.

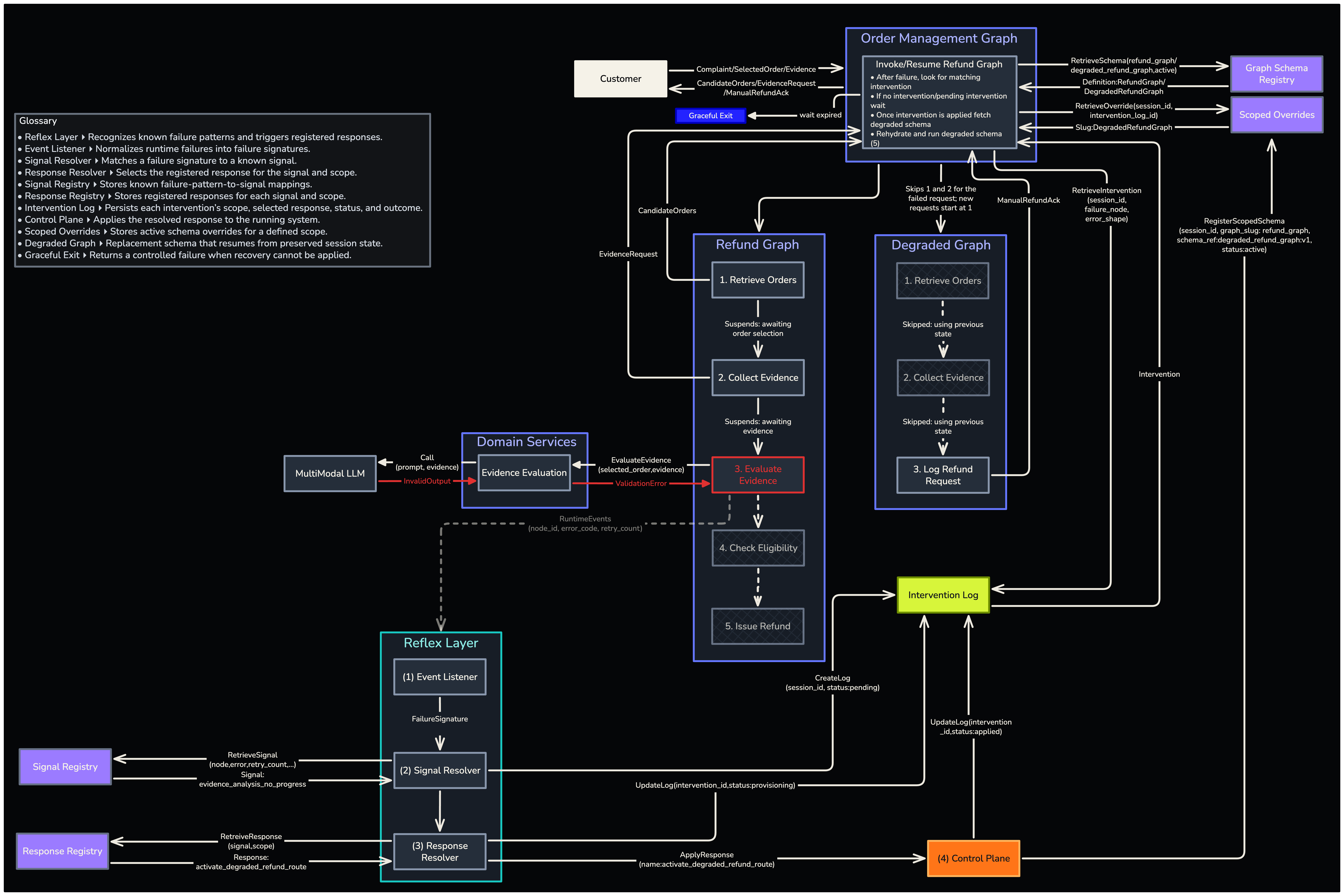

Here is how the Reflex Layer handles this.

1. Compute the failure signature

The Event Listener follows a deterministic approach to reduce runtime evidence from failed attempts into a compact description of the incident. This operation must be repeatable, cheap, and parseable from existing information (e.g., node IDs, error codes, retry counts) with no LLM support.

{
  "node": "evaluate_evidence",
  "failure_shape": "model_output_validation_error",
  "retry_budget_exhausted": true,
  "required_artifact_present": false,
  "scope": "session"
}

A 'failure signature' describes what is happening in the run: the failing node, the error, the retry state, and the scope at which the initial response may be applied. This particular one states that the node repeatedly produced invalid output, exhausted its retries, and never produced a valid evidence analysis.

2. Match the signal and record the pending intervention

Next, Signal Resolver compares the resulting signature with predefined signals, persisted in the Signal Registry. These signals are short codes for runtime conditions the system knows how to respond to, such as a stalled retry loop or a repeated output-schema rejection in a specific node. In this case, the signature resolves to evidence_analysis_no_progress.

At this stage, the Reflex Layer decides to record an intervention for the affected session, as persisting early ensures an in-flight execution has a durable record of a pending intervention.

{
  "intervention_id": "int_9012",
  "scope": {
    "kind": "session",
    "session_id": "sess_1234"
  },
  "status": "pending"
}

3. Resolve the operational response

The Response Resolver retrieves the approved response for that signal and scope from the Response Registry.

An action could either pause a specific workflow or even replace it, as long as it modifies the path to avoid the original failure. Here, activate_degraded_refund_route replaces the failing evidence analysis, eligibility evaluation, and automatic refund execution with a node that logs the refund request for manual review.

The recorded intervention would be updated with the selected response, its status would move to provisioning, and the Response Resolver passes the selected action to the Control Plane.

4. Register the session-scoped override

The Control Plane adds a scoped mapping between the affected session and the persisted, degraded graph:

{
  "override_id": "scs_7781",
  "graph": "refund_graph",
  "scope": {
    "kind": "session",
    "session_id": "sess_1234"
  },
  "schema_ref": "degraded_refund_graph:v1",
  "status": "active"
}

This does not change the globally active refund graph that all other sessions continue to follow. Once the scoped mapping has been persisted, the intervention record is marked as applied, and the failure evidence along with the selected response is attached for audit.

5. Resume from the degraded entry point

When the Refund Graph errors, the Order Management Graph queries the Intervention Log to find a matching intervention. If no such record exists, or if it is still pending or provisioning, the graph halts for a few seconds to allow the Reflex Layer to complete the operation. This duration is the layer's entire budget. If no intervention is applied before it expires, the graph reverts to the graceful exit implemented via containment, as it would have if the Reflex Layer were not implemented.

Once the intervention is marked applied, the runtime rehydrates the graph using the degraded_refund_graph:v1 schema and resumes from the degraded recovery entry point. The previously retrieved order and collected evidence are reused, so the earlier nodes do not run again.

The obvious objection is that everything above could have been built into a single refund subgraph, ensuring automatic failover to the manual refund log once the evaluate evidence node exhausts its retries. Before a Reflex Layer exists, that is exactly what I would build.

This comes back to one of the qualifiers for introducing a Reflex Layer: the agent supports a broad range of paths, and anticipating every failure mode would leave the graph bloated with recovery logic. Sure, those paths could be split into subgraphs, with degraded variants built around them, but the graph should remain a view of the business logic. For me, once recovery logic starts dominating the graph, it has crossed the line from expressing the business flow to addressing implementation concerns.

Multi-session interventions

The Reflex Layer earns its keep when the same failure begins appearing across multiple sessions. The layer can recognize recurrence by aggregating matching signals over a fixed period and grouping them by common identifiers such as graph version, app version, region, and tenant, then widening the intervention to the affected cohort.

Multi-session interventions carry more risk than single-session interventions because, post-intervention, healthy traffic within the cohort would also use the degraded path. Consequently, a misread signal can have a greater impact, potentially degrading sessions that would otherwise have functioned properly. Ultimately, decisions on how to widen the scope of interventions must be made at the system level. Interventions that exceed a defined blast-radius threshold should require human verification. In such cases, the system will gather the evidence, propose the expanded scope, and place the intervention in an approval state until an operator confirms it.

{
  "graph": "refund_graph",
  "scope": {
    "app_version": "6.4.1",
    "region": "eu-west"
  },
  "schema_ref": "degraded_refund_graph:v1",
  "status": "awaiting_approval"
}

One important decision in this design is to require execution context during graph resolution. This way, right at schema resolution, the runtime can check for matching active overrides for the current session or cohort, and load the exact schema_ref referenced by that override instead of the globally active schema Note. This ensures new sessions within the affected scope enter the degraded path directly and never encounter the known failure.

Recovery through shadow execution

Some model-driven failures resolve as unpredictably as they appear, often before anyone has diagnosed the root cause. When there is sufficient evidence that the original path is healthy again, you could make a case for automatically withdrawing the degradation and returning users to the original path.

But proving recovery brings its own set of problems: the moment users are moved onto the degraded route, the runtime stops producing evidence of the route they left behind. This is not a hurdle I am confident letting the Reflex Layer clear on its own, especially without a proper trial.

I have explored persisting masked node inputs linked to failure signatures and replaying them to verify recovery against the exact events that caused the failure. But this implementation had two shortcomings: the stored inputs had limited variance, and managing them introduced an additional component whose complexity I could not justify.

A design I have trialed, though not enough to call proven, goes as follows.

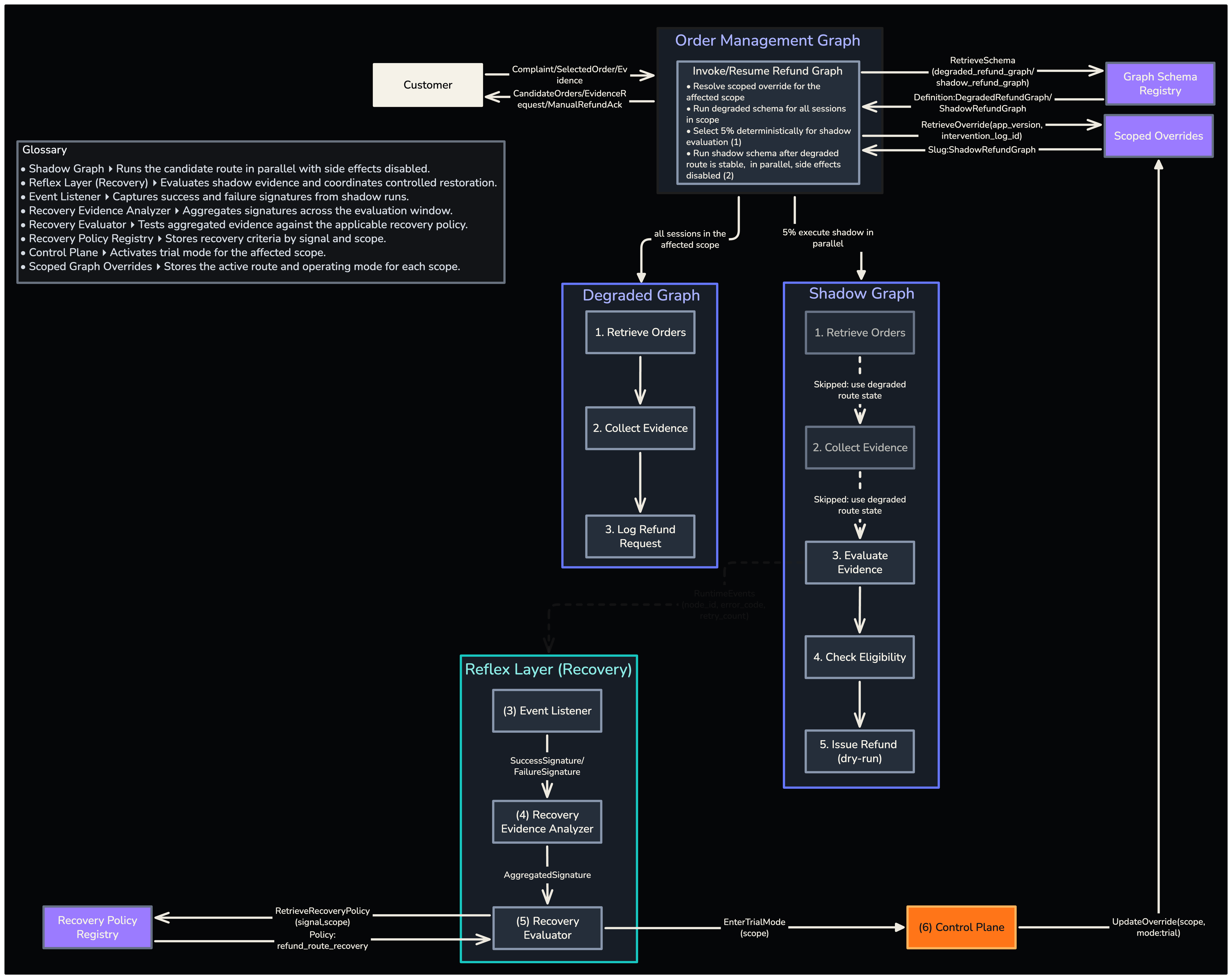

Configure a shadow recovery path

When the degradation is applied, the Control Plane attaches a side-effect-free shadow schema reference to the scoped override that can later be used to test the original path. It stays disabled until the degraded route has been stable for a predefined duration or request count.

{
  "graph": "refund_graph",
  "scope": {
    "app_version": "6.4.1",
    "region": "eu-west"
  },
  "primary_schema_ref": "degraded_refund_graph:v1",
  "shadow": {
    "schema_ref": "shadow_refund_graph:v1",
    "status": "pending",
    "probe_percentage": 5,
    "selection": "deterministic",
    "side_effects": "disabled"
  }
}

Once the degraded route has stabilized, the Control Plane activates the shadow configuration. Every affected session continues through the degraded graph, while a limited percentage also executes the shadow path. To ensure the collected evidence is usable, the shadow path should be a copy of the original, with mutating nodes replaced by side-effect-free implementations.

2. Evaluate the recovery evidence

The shadow executions emit runtime events tagged with the affected scope and the schema under test. The Recovery Evidence Analyzer aggregates recovery evidence by scope, schema, and time window. As new evidence arrives, the Recovery Evaluator retrieves the applicable policy from the Recovery Policy Registry and evaluates the aggregated evidence against it. Evaluating the success rate is not sufficient on its own; even a single successful probe is a 100% success rate. The policy has to define how much evidence is required, and for how long.

{
  "minimum_probes": 200,
  "maximum_signal_recurrences": 0,
  "maximum_failure_rate": "baseline",
  "consecutive_healthy_windows": 3,
  "window_duration_minutes": 10,
  "required_artifact_present": true,
  "maximum_p95_latency_ms": 4000
}

For a path important enough to justify automatic degradation, I would only feel comfortable with zero recurrences of the triggering signature, and an overall probe failure rate no worse than the path's healthy baseline Note.

3. Restore traffic gradually

Meeting the recovery policy should not immediately remove the degraded route. Instead, the Control Plane should move the scoped configuration into a trial state:

{
  "graph": "refund_graph",
  "scope": {
    "app_version": "6.4.1",
    "region": "eu-west"
  },
  "mode": "trial",
  "default_schema_ref": "degraded_refund_graph:v1",
  "candidate_schema_ref": "refund_graph:v1",
  "trial_percentage": 5,
  "selection": "deterministic"
}

Most sessions continue on the degraded graph, while only a stable subset returns to the original path with side effects enabled. If the original failure reappears within that subset, the affected scope reverts to the degraded state. A trial session that reproduces the failure is just another failing session; the single-session reflex catches it and degrades it individually.

If the trial remains healthy, its percentage can be increased up to 100%, at which point the scoped override is removed.

The original intervention record remains unchanged throughout: its responsibility ended when the degradation was applied. Recovery evidence, trial state, and restoration progress should be linked to the scoped execution record or a separate recovery record.

Limitations and trade-offs

A Reflex Layer has real weaknesses. The signal and response registries need owners; otherwise, they go stale. A schema change that renames a node can silently orphan every signal referencing it. The infrastructure isn't free. And it only covers a subset of failures: once a node has performed an irreversible action, rerouting can't undo it; a failure past that point is a different problem.

So a Reflex Layer should not be your first instinct. It's a complexity you are not thrilled about but willing to tolerate after the repair paths have outgrown the graph, and a failed session has cost you a user one too many times.
